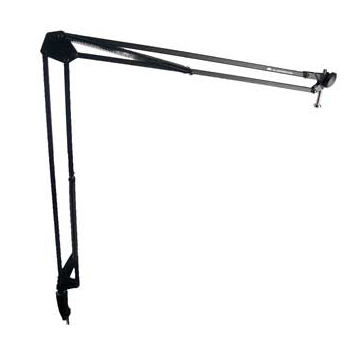

The HB-1 is an articulated arm which is of very substantial steel channel structure and balanced by four external springs. Capable of supporting microphones up to 2.5 lbs, the HB-1 has a reach of 40″.
The HB-1 is shipped with a brass lined ‘C’ clamp mount that accept up to a 1.5″ thick table. The HB-1 will fit all of the brass lined Heil mounting accessories:
- DT-1 Flush Mount that mounts through a 1.5″ hole in the desk top
- FL-2 Flange Mount secures to any flat surface
- WM-1 Wall Mount
- RS-1 12″ Riser Mount
The HB-1 Boom accepts all of the standard 5/8″ -27 threaded microphone hardware.
The threaded chrome stem can be secured into it’s needed position by tightening the thumb screw.
